Comparison of 3Com NBX 3100-Series Phones

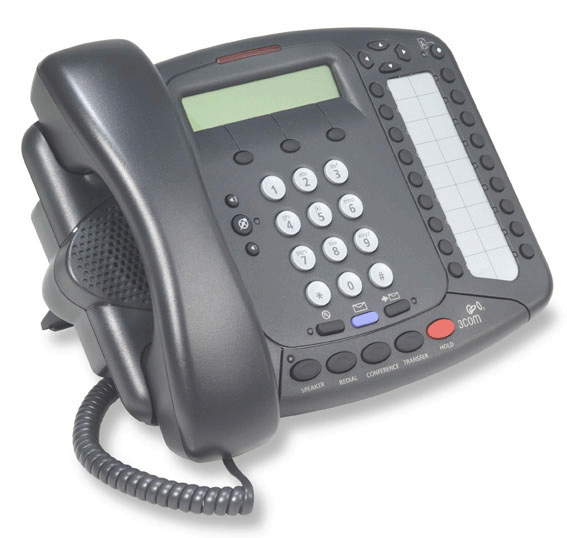

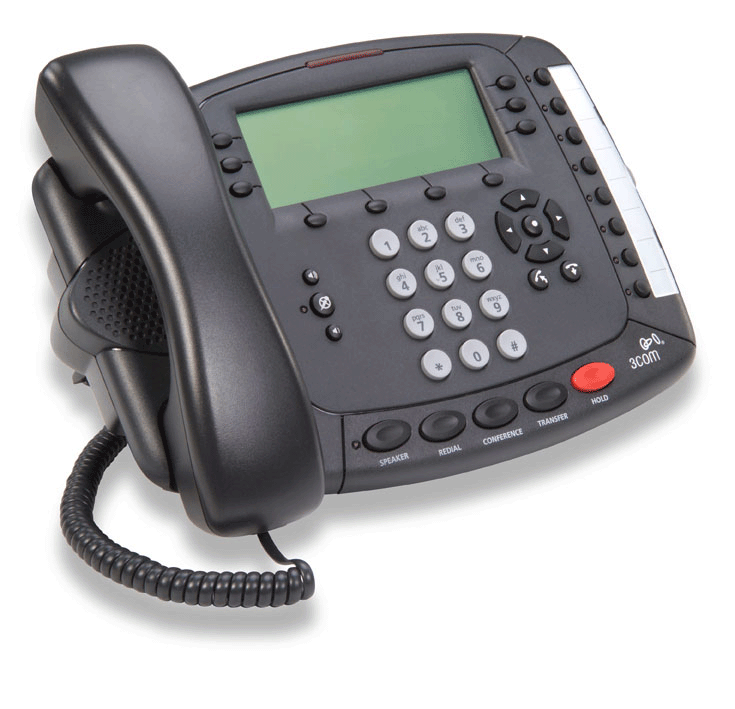

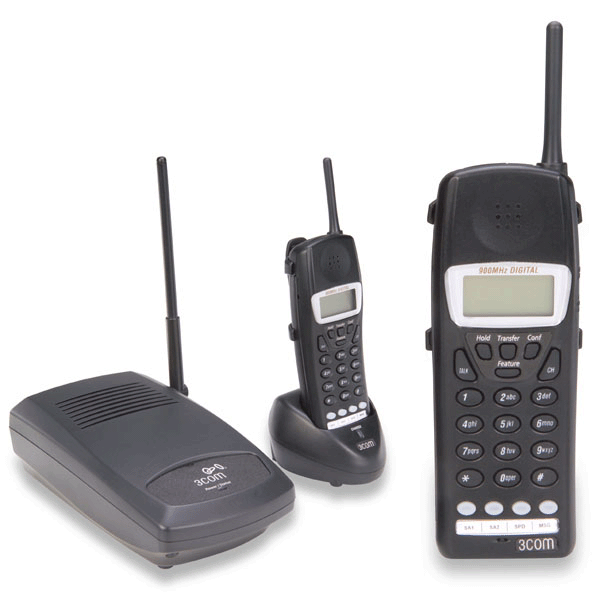

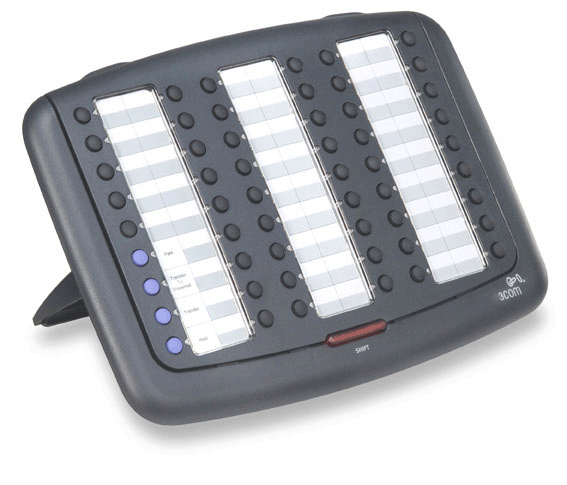

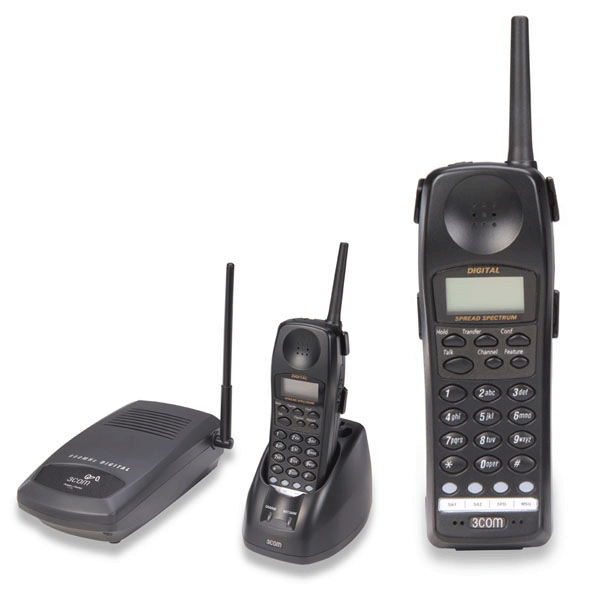

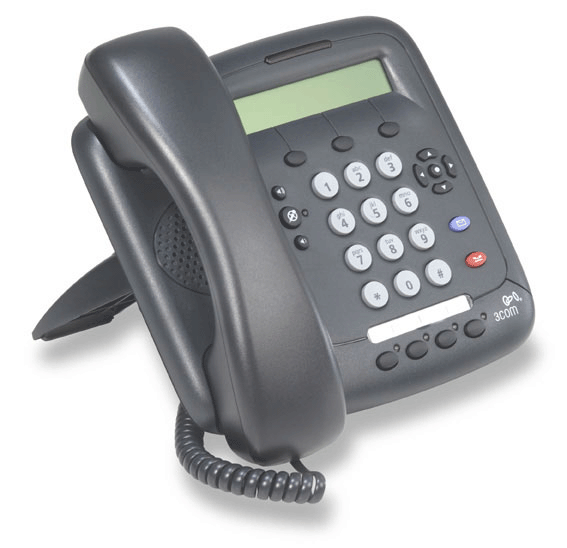

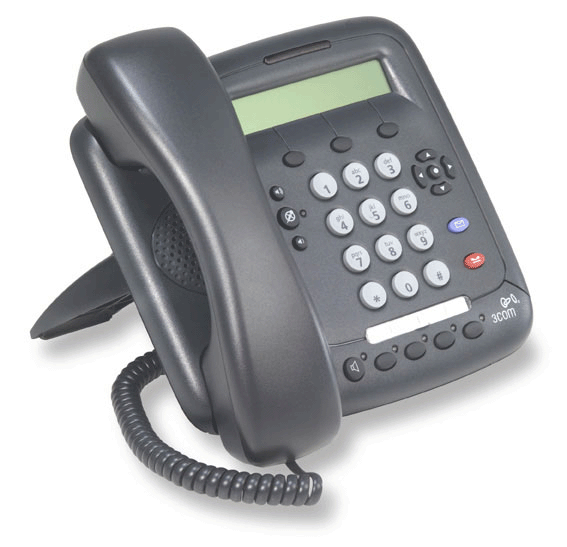

	NBX 3100 Entry Phone	NBX 3101 Basic Phone	NBX 3101SP Basic Phone	NBX 3102 Business Phone	NBX 3103 Manager Phone	NBX 3105 Attendant Console	NBX 3106 Cordless Phone	NBX 3107 Cordless Phone
Maximum system (line) appearances	1	4	4	18	12	50	4	4
Programmable buttons w/ lights	NO	4	4	18	8	50/100 WITH SHIFT BUTTON	4	4
Fixed feature buttons	4	5	6	10	10	4	8	9
Display softkeys	NO	3	3	3	10	NO	NO	NO
Four-way cursor control	NO	YES	YES	YES	YES	NO	NO	NO
Display size	NO	160x33 PIXELS	160x33 PIXELS	320x120 PIXELS	320x120 PIXELS	NO	2 LINES	2 LINES
Ethernet ports	1-10/100	2-10/100	2-1/100	2-10/100	2-10/100/1000 GIGABIT	1-10/100	1-10/100	1-10/100
Power over Ethernet support (802.3af)	YES	YES	YES	YES	YES	YES	NO	NO
Speakerphone	NO	LISTEN ONLY	HALF DUPLEX	FULL DUPLEX	FULL DUPLEX	NO	NO	NO
Wideband audio support	HANDSET ONLY	HANDSET ONLY	HANDSET ONLY	YES	YES	NO	NO	NO
Definable ring tones	NO	9	9	9	9	NO	NO	NO
Headset jack	NO	NO	NO	YES	YES	NO	YES	YES
Codecs G.711, ADPCM, G729 A/B	YES	YES	YES	YES	YES	NO	YES	YES
G.722 codec-ready handset	YES	YES	YES	YES	YES	NO	NO	NO
G.722 codec-ready speakerphone	NO	NO	NO	YES	YES	NO	NO	NO
Adaptive jitter buffer	YES	YES	YES	YES	YES	NO	YES	YES
QoS: IP-ToS, 802.1p	YES	YES	YES	YES	YES	NO	YES	YES
TAPI support	YES	YES	YES	YES	YES	YES	YES	YES
DHCP, Option 184	YES	YES	YES	YES	YES	YES	YES	YES
Desk or wall mountable	YES	YES	YES	YES	YES	YES	YES-BASE UNIT	YES-BASE UNIT
Removable faceplate for localization	NO	NO	NO	YES	YES	NO	NO	NO
Browser-based administration	YES	YES	YES	YES	YES	YES	YES	YES
Platform support	NBX, VCX	NBX, VCX	NBX, VCX	NBX, VCX	NBX, VCX	NBX, VCX	NBX ONLY	NBX ONLY
Required License	GROUP 0	GROUP 1	GROUP 1	GROUP 2	GROUP 2	GROUP 5	GROUP 1	GROUP 1
Required Software Revision	5.0	4.3	4.3	4.2	5.0	4.3	5.0	5.0
